Enhanced
So strong. So small. So Light
Introducing EVS-1, designed from the inside out to be the strongest, lightest, smartest, most compact and versatile vision system ever made. At the core of the EVS-1 design is a heat-treated aluminum/titanium body that ensures ever-lasting durability.
Take a closer look

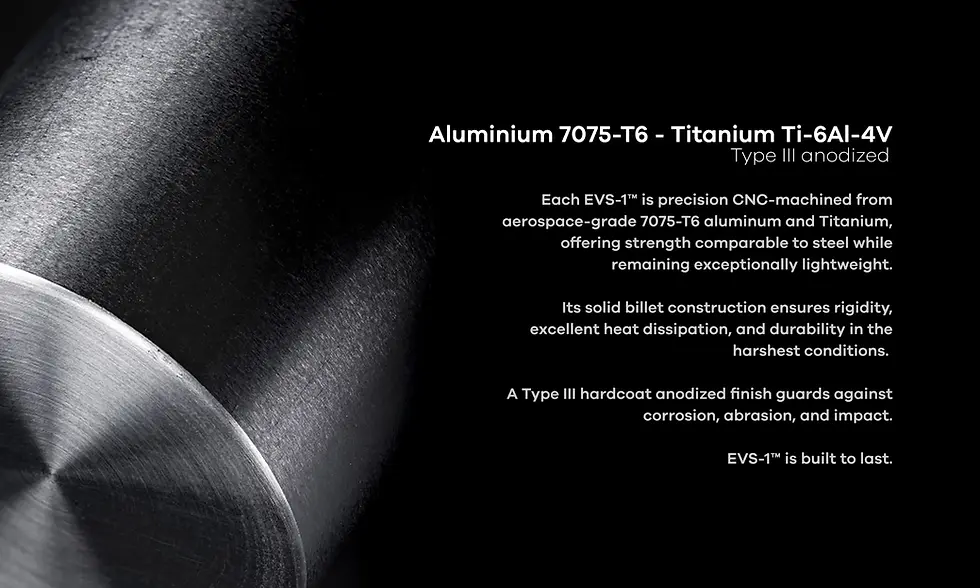

Titanium-reinforced CNC aluminum chassis combines battlefield-grade toughness with featherlight weight*.
451g
15.9ozTool-less modularity, truly modular.
Featuring our patent-pending CenterLock® system, you can swap your optical pod in seconds, on the field, with no tools required.
The most precise control over your optical pod.
Fine-tune your gain control range to optimize responsiveness for your current operation.
With the configurator, this same control knob lets you manage many more functions.
With its external connector plug, you can not only link your EVS to its auxiliary battery pack, but also integrate it into a smart and connected ecosystem.
Multi-spectral
See through more than darkness
Change your optical pods without the need of tools to adjust your EVS to your mission needs.
Across the EVS optical pod modules, you’ll find innovation that goes to great lengths.
The thermal imager pod features a next generation 640x512 Focal plane array with a 12um pitch, and a sensitivity rated below 30mK. It's incredibly sharp monitor displays 60 frames per seconds a super-power like thermal image with 40° of field of view, to perfectly match an intensifier optical pod module.
Compose your Enhanced vision system on the fly to see, at any place, at all times.
Night-Vision
Night, intensified
The EVS-1 intensifier optical pod is a cross compatible pod for night vision image intensifiers.
Compatible with Autogain or manual gain, Gen 2+ or Gen3, MX-10160 or MX-111769 intensifiers.
The pods are available for purchase as a assembled system, or as a housing only.
Manual or Autogain
Compatible intensifier types
PVS-14
Optical system type
Gen2+ and Gen3
Adjustable voltage level
IP68 / MIL-STD-810H
66ft/20m for 2h submersion rating
Thermal
Nothing hides from you
The EVS-1 thermal optical pod is a cutting edge thermal imager for helmet mounted and weapon mounted applications.
640x512 @12μm
Focal plane array resolution
30mK
Thermal sensitivity
2490x2490
Display resolution
60Hz
Refresh rate
IP68 / MIL-STD-810H
66ft/20m for 2h submersion rating
640x512 @12μm
Focal plane array resolution
30mK
Thermal sensitivity
2490x2490
Display resolution
60Hz
Refresh rate
IP68 / MIL-STD-810H
66ft/20m for 2h submersion rating
Illuminate
Powerfull, piercing light
With it's integrated dual illuminators, it's like having more than a dedicated field illuminator.
Featuring the latest VCSEL laser technology and precisely coated optics, the piercing infrared light will illuminate up-close and far away.
Up to
500mW
optical radiant power
Modular to
1064nm
emissive wavelenght
Up to
500mW
optical radiant power
Modular to
1064nm
emissive wavelenght
8° VCSEL
(optional)
Narrow beam IR illuminator
850nm ±2nm (or 940nm)
8° beam angle
20° VCSEL
Narrow beam IR illuminator
850nm ±2nm (optional 940nm)
20° beam angle
40° LED
Narrow beam IR illuminator
850nm ±50nm (optional 940nm)
40° beam angle
2 MOA VCSEL
(optional)
VCSEL IR designator
850nm ±2nm (or 940nm)
2 MOA
Ecosystem
An ecosystem for success
With it's integrated dual illuminators, it's like having more than a dedicated field illuminator.
Featuring the latest VCSEL laser technology and precisely coated optics, the piercing infrared light will illuminate up-close and far away.
